In our previous post, "Centralised Control Planes for SaaS - Part 2," we discussed about the approaches to build a stateless control plane and how to handle async communication b/w the data planes and cloud provider. In this instalment we take dive into the physical and logical models in a SaaS control planes.

Introduction​

As we build a robust SaaS architecture understanding of logical and physical mappings is essential. These mappings serve as tools in aiding SaaS developers in the translation of user-facing processes into corresponding SaaS backend workflows.

Logical Model and Physical Model​

The logical model encompasses metadata pertaining to various aspects of the system:

  • Organisations: Every user using the SaaS platform belongs to an organisation. Organisation is a customer for the SaaS provider.
  • Tiers or Plans: The different levels of service or subscription plans offered to users.
  • Workspaces: Dedicated spaces for users to collaborate and deploy applications.
  • Applications: Software applications and services provided within the SaaS framework.

This metadata is stored in metadata DB. It is important to note that for each logical entity, there exists a corresponding physical entity in the system.

The physical model, deals with the tangible, real-world bindings to the underlying infrastructure that supports the SaaS architecture. These physical include:

  • Customer: A customer is an organisation.
  • Data Planes: Data Planes are where the software is deployed. They can be in the SaaS provider network or in the customer network.
  • Tenants: Segregated sections or environments within the architecture, often employed for multi-tenancy support.
  • Applications: Application denotes the SaaS provider's application.
note

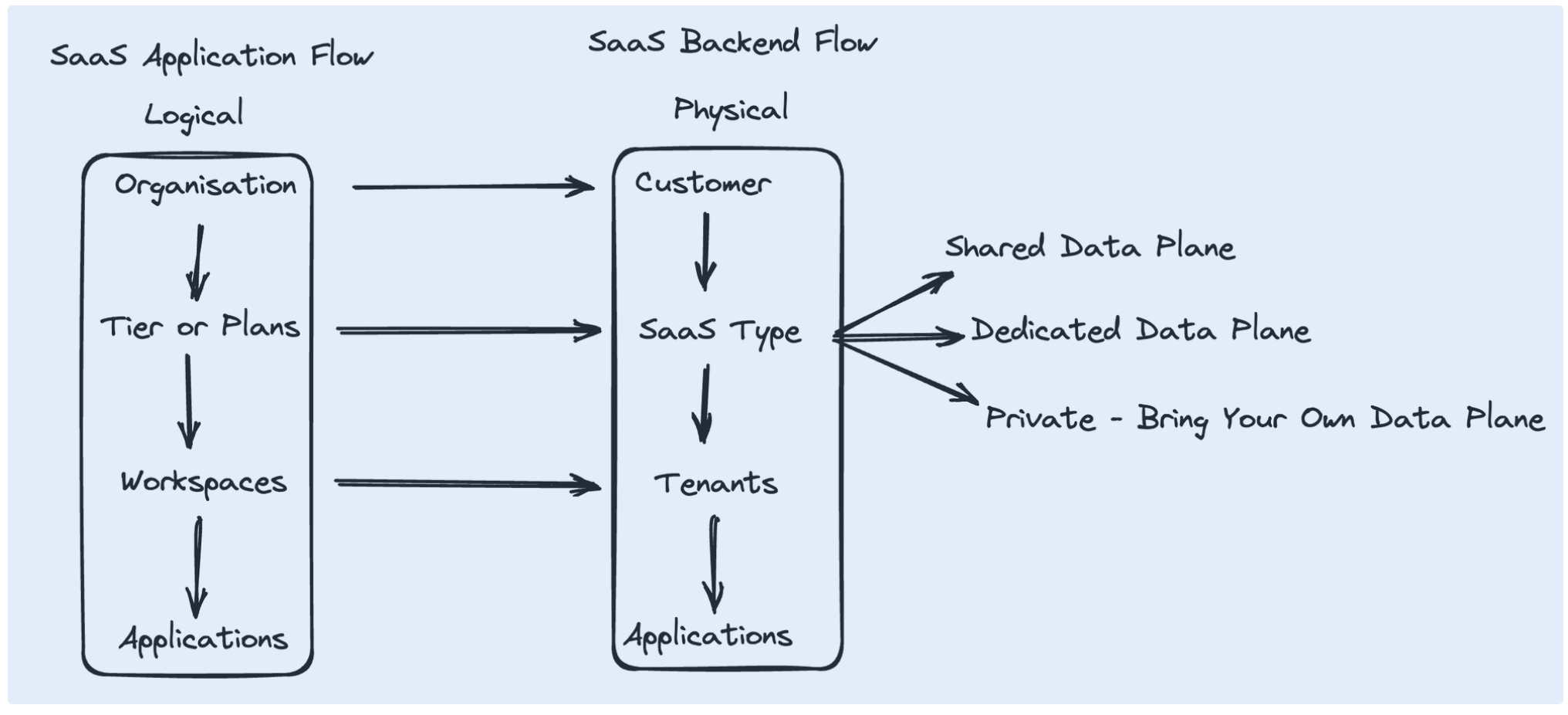

This diagram displays mapping between the logical and physical terminologies.


Relationship Model​

Here we understand the relation between each of the components described within the logical and physical model.

Organisation, Workspace and Applications ( Logical )​

  • Organisation onboarded is a customer for the SaaS Provider.
  • Organisation can consists of a single workspace or multiple workspace.


Tiers or Plans and SaaS Types ( Logical to Physical )​

  • A Tier or Plan is offered by the SaaS provider.
  • Each Tier or Plan has a quota limit on the usage of the SaaS product.
  • Organisation onboarded have a SaaS Tier associated with them.

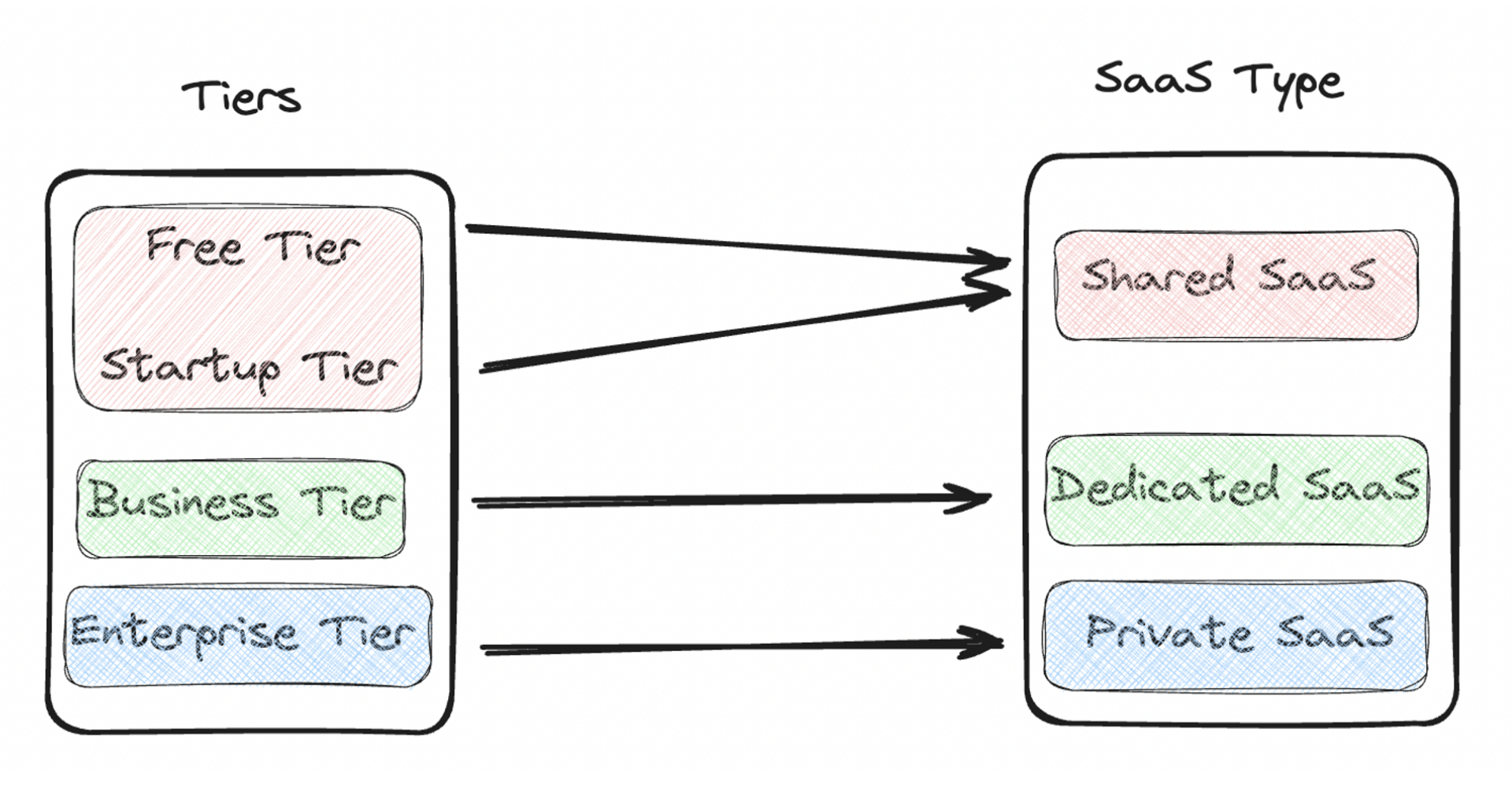

  • Each tier is mapped to a SaaS Type.


SaaS Types and Data Planes ( Conceptual to Physical )​

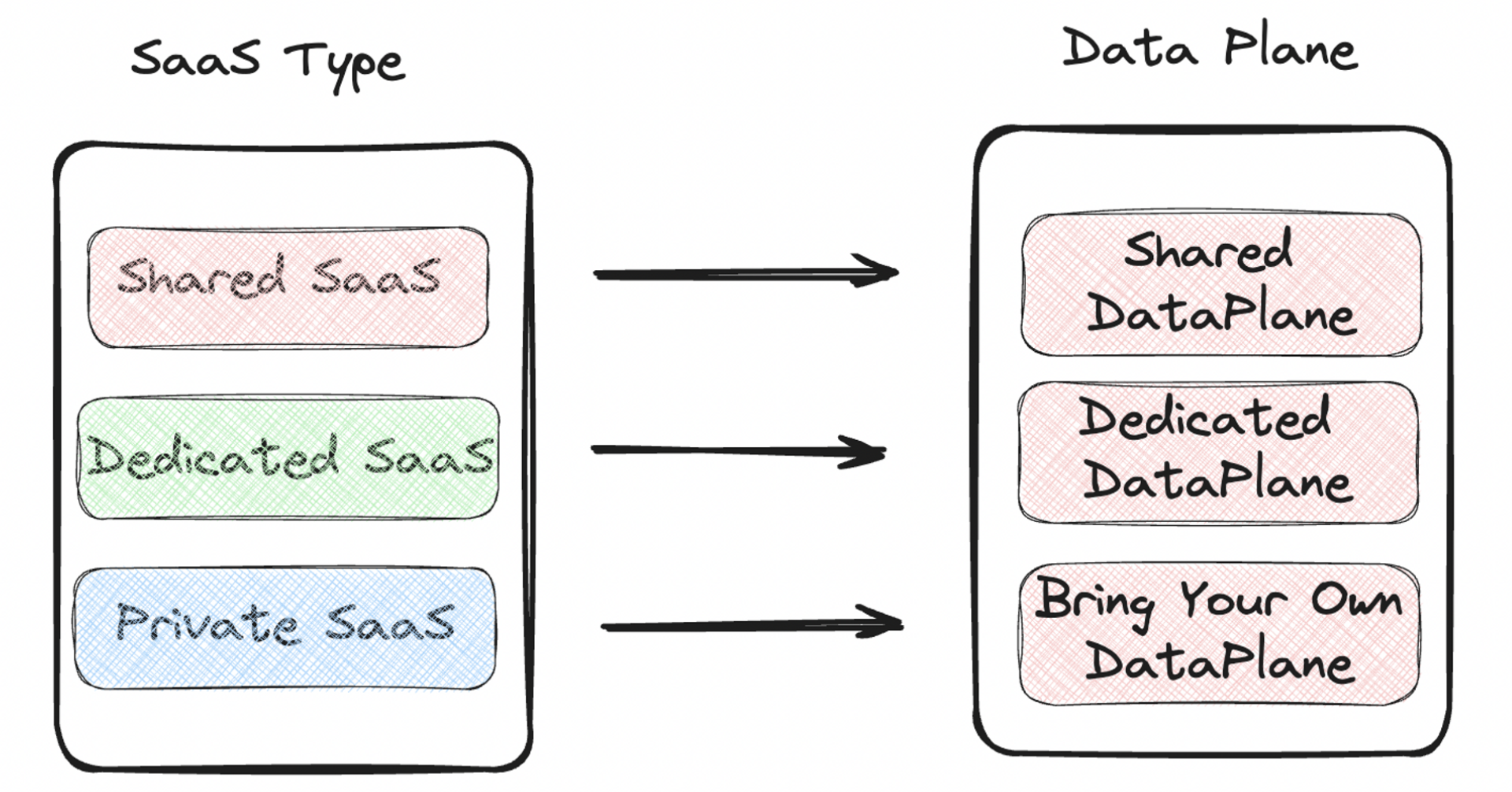

  • Each SaaS Type is mapped to a data plane.
    note

    SaaS Type is a conceptual model. Each SaaS Type has a physical mapping ie data planes. Data Planes as an abstraction consist of network, storage and kubernetes.


End to End Mapping between Logical and Physical Models​

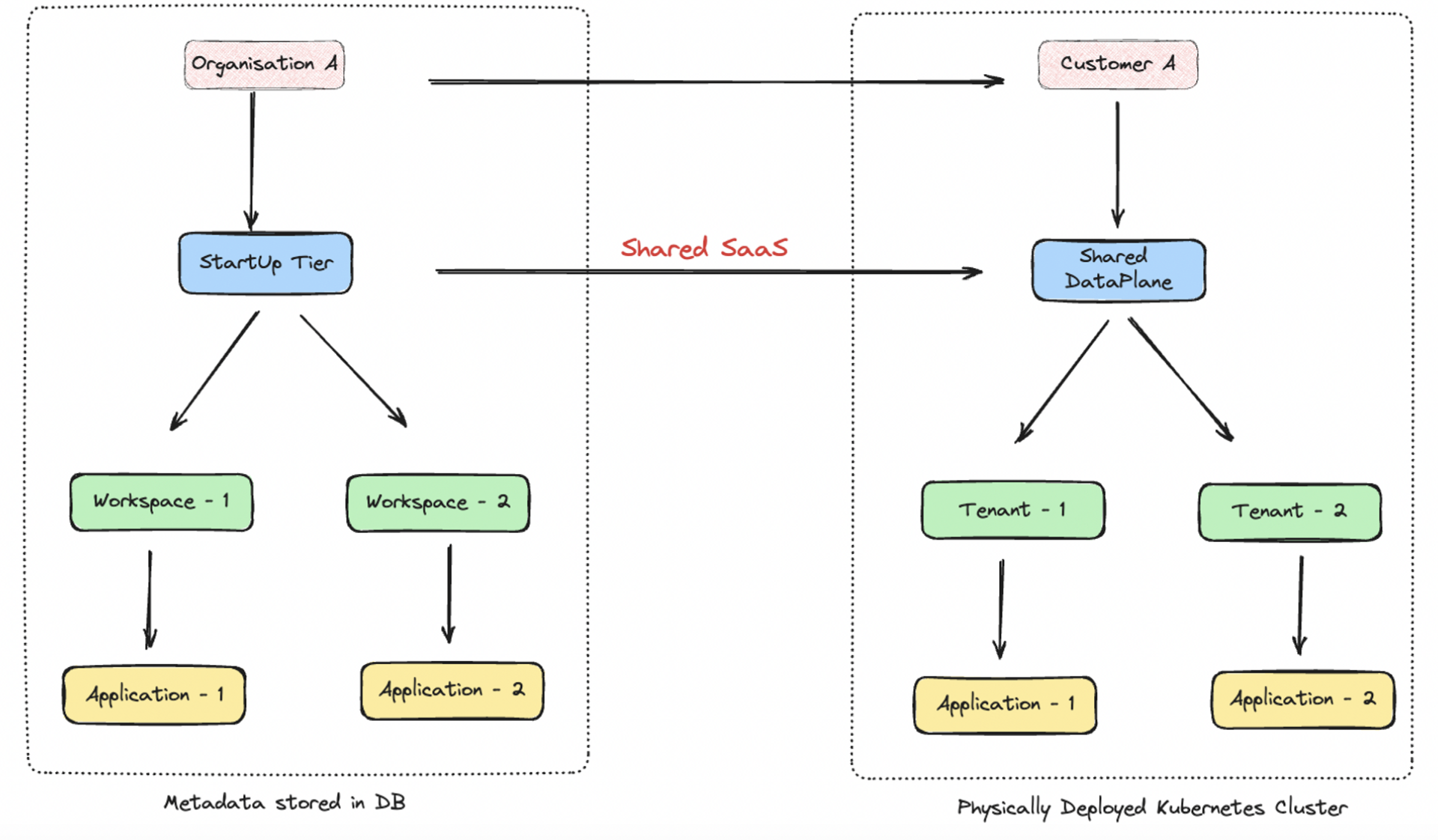

  • The logical entities is metadata stored in the database.
  • For each entity stored a physical entity is created.


Summary​

SaaS architecture relies on logical and physical models. These models aid developers in bridging user processes with backend workflows. If you are building a SaaS, and want to build a control plane, feel free to get connected with us.
