· 8 min read

The goal of this series is to provide an in-depth understanding of building state-driven infrastructure products, as opposed to API-driven ones. Much of the content is drawn from my experience building control planes for infrastructure. Before Kubernetes, I worked as an infrastructure developer on platforms like BOSH, Cloud Foundry, and Mesos. However, Kubernetes fundamentally changed my approach to state management and the construction of states.

Introduction to State Machines

A state machine is a behavior model that operates through a defined set of states, which is why it is often referred to as a finite-state machine (FSM). It operates based on its current state and specific inputs, which trigger state transitions and generate corresponding outputs.

At the core of a state machine are its two primary components:

  • States
  • Transitions.

A state represents a particular condition or situation of a system, influenced by previous events, and it determines the actions taken in response to subsequent events.

Transitions, on the other hand, define the movement from one state to another based on input conditions.

Let’s break it down with a simple example:

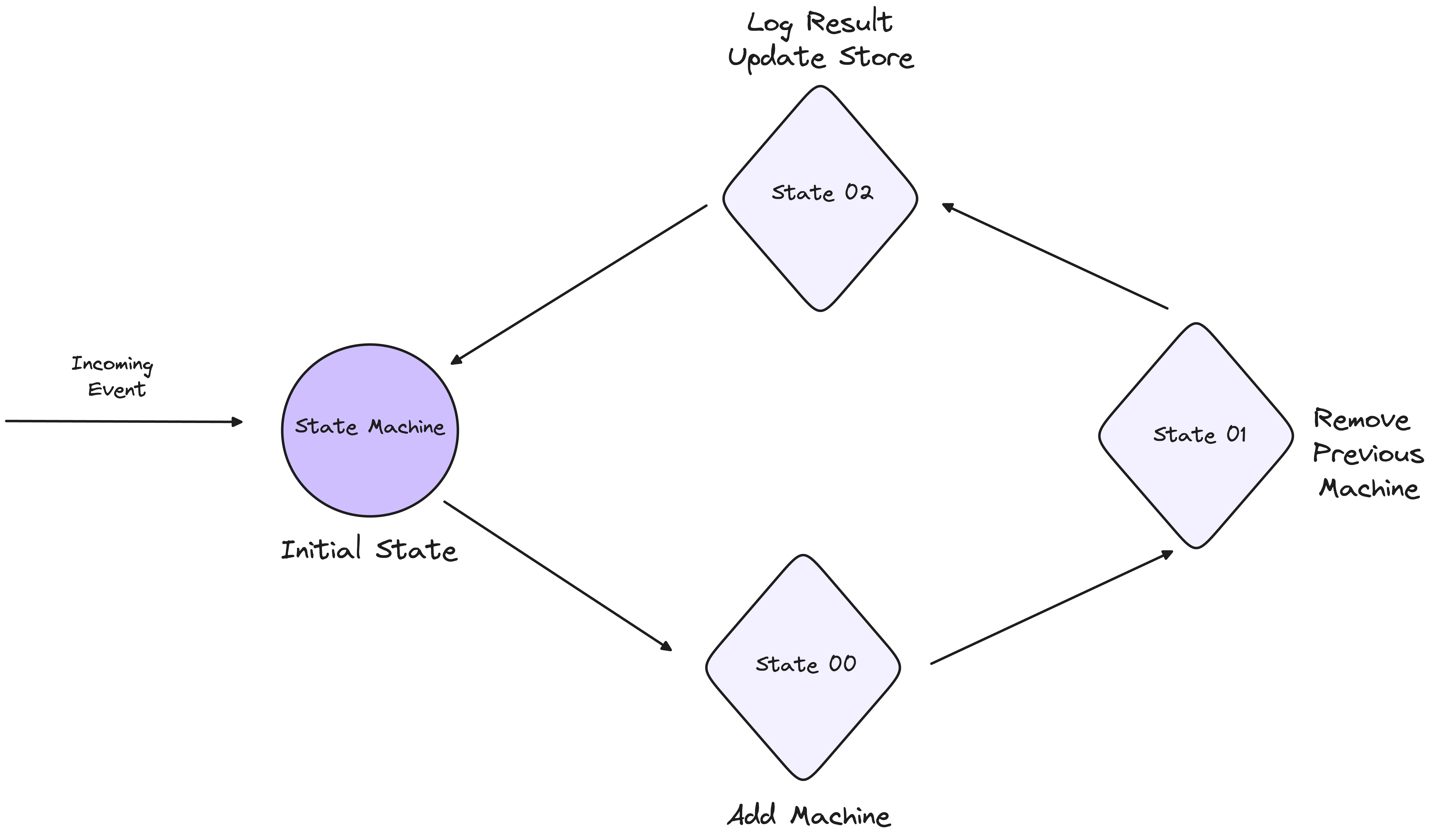

Imagine a scenario where your state machine needs to add a new machine and remove an existing one. To accomplish this, we can define the following states:

Initial State: This is the starting point, where the system is awaiting an event, such as the command to add a new machine.

Transition State: Once the event is received, the state machine moves to this intermediate state, where it handles the tasks of adding the new machine and preparing to remove the old one. During this state, various actions are executed to ensure a smooth transition.

Final State: After the new machine has been added and the old machine successfully removed, the state machine reaches this final state, where the system stabilises and awaits the next event.



1. States Definition

// States
const INITIAL_STATE: &str = "Initial";
const ADDING_NEW_MACHINE_STATE: &str = "AddingNewMachine";
const DELETING_OLD_MACHINE_STATE: &str = "DeletingOldMachine";
const FINAL_STATE: &str = "Final";

2. Event Handling and Transitions

// Events
let mut current_state = INITIAL_STATE;

// Event: Start Process
if current_state == INITIAL_STATE {
current_state = ADDING_NEW_MACHINE_STATE;
}

// Event: New Machine Added
if current_state == ADDING_NEW_MACHINE_STATE {
// Do the action
current_state = DELETING_OLD_MACHINE_STATE;
}

// Event: Old Machine Deleted
if current_state == DELETING_OLD_MACHINE_STATE {
// Do the action
current_state = FINAL_STATE;
}

3. Actions

// Action: Initialize System
fn initialize_system() {
println!("System initialized.");
}

// Action: Add New Machine
fn add_new_machine() {
println!("Adding new machine...");
// Logic to add a new machine
}

// Action: Delete Old Machine
fn delete_old_machine() {
println!("Deleting old machine...");
// Logic to delete old machine
}

// Action: Finalize Process
fn finalize_process() {
println!("Process complete.");
}

Imperative Systems vs Declarative Systems

The above design primarily falls under the category of imperative systems, where users explicitly define the state transitions. In these systems, the user is not only aware of the desired state but also dictates the precise steps (or transitions) needed to reach that state. The control of the system lies heavily in the hands of the user, who manually defines each stage of the transition process.

Conversely, declarative systems shift the burden of managing transitions from the user to the system itself. While users are still aware of the desired state, they do not need to specify how to reach that state. The system observes the current state, compares it to the desired state, and autonomously constructs the necessary transitions to reconcile any differences. In this model, the system takes on the responsibility of state transitions, simplifying the user’s role to one of specifying outcomes rather than processes.

Observed State

One key difference between the two paradigms is how they handle observed state. Nowhere in the Kubernetes documentation is there an explicit mention of controllers being state machines.

That’s because state machines are often rigid and predefined, making them less adaptable to dynamic environments. Kubernetes controllers, however, operate on a more flexible model, using conditions to drive their decision-making.

Controllers observe the current state of the system and use this observation to determine the next course of action. This is different from a strict state machine, which is built on a finite number of predetermined states and transitions. Kubernetes’ model allows controllers to adapt to unforeseen conditions and make decisions dynamically, based on the actual observed state.

Conditions: Not State Machines

In Kubernetes, conditions are the backbone of how states communicate with each other. They are orthogonal in nature, meaning they exist independently of each other but work together to inform the system about its current state.

For example, a StatefulSet in Kubernetes may have a "Ready" condition, which indicates whether all pods are running and ready to serve traffic. These conditions are not part of a rigid state machine but are instead used by the controller to make decisions about the system’s next actions.

The flexibility provided by conditions allows the system to handle unintended states. When something unexpected occurs, the system doesn't fail outright but instead observes the conditions and attempts to reconcile the current state with the desired state. This adaptability is one of the most intriguing aspects of Kubernetes' architecture.

One potential misconception is that conditions should be used to build state machines. This, however, is not the intended purpose of conditions. The set of "Reasons" tied to conditions may evolve over time, and relying on a fixed set of enumerated conditions to represent states makes the system brittle and prone to breakage when these conditions change.

Conditions are not designed to define state transitions like state machines. Instead, their strength lies in providing insight into the current status of a system, especially when the state is complex or ongoing. By observing conditions, systems can infer the current state and respond accordingly, without the need for rigid state transitions.


Events

Events represent discrete, point-in-time occurrences, while conditions represent the current state of an ongoing process.

For example: Pod creation is an event, marking a specific moment when a Pod is created. Deployment progressing is a condition, reflecting the ongoing state of the deployment process.

Role of Events

Events are transient and provide a log of what has happened at a specific moment. They are highly valuable for tracking real-time occurrences in a system, particularly for debugging purposes or monitoring system behaviour over time. However, events alone are not sufficient for tracking long-running processes or understanding the current state of an object.

Events capture snapshots in time, and conditions offer deeper insight into current system states. The interplay between the two enhances system observability and user experience, making both tools indispensable for managing Kubernetes workloads.

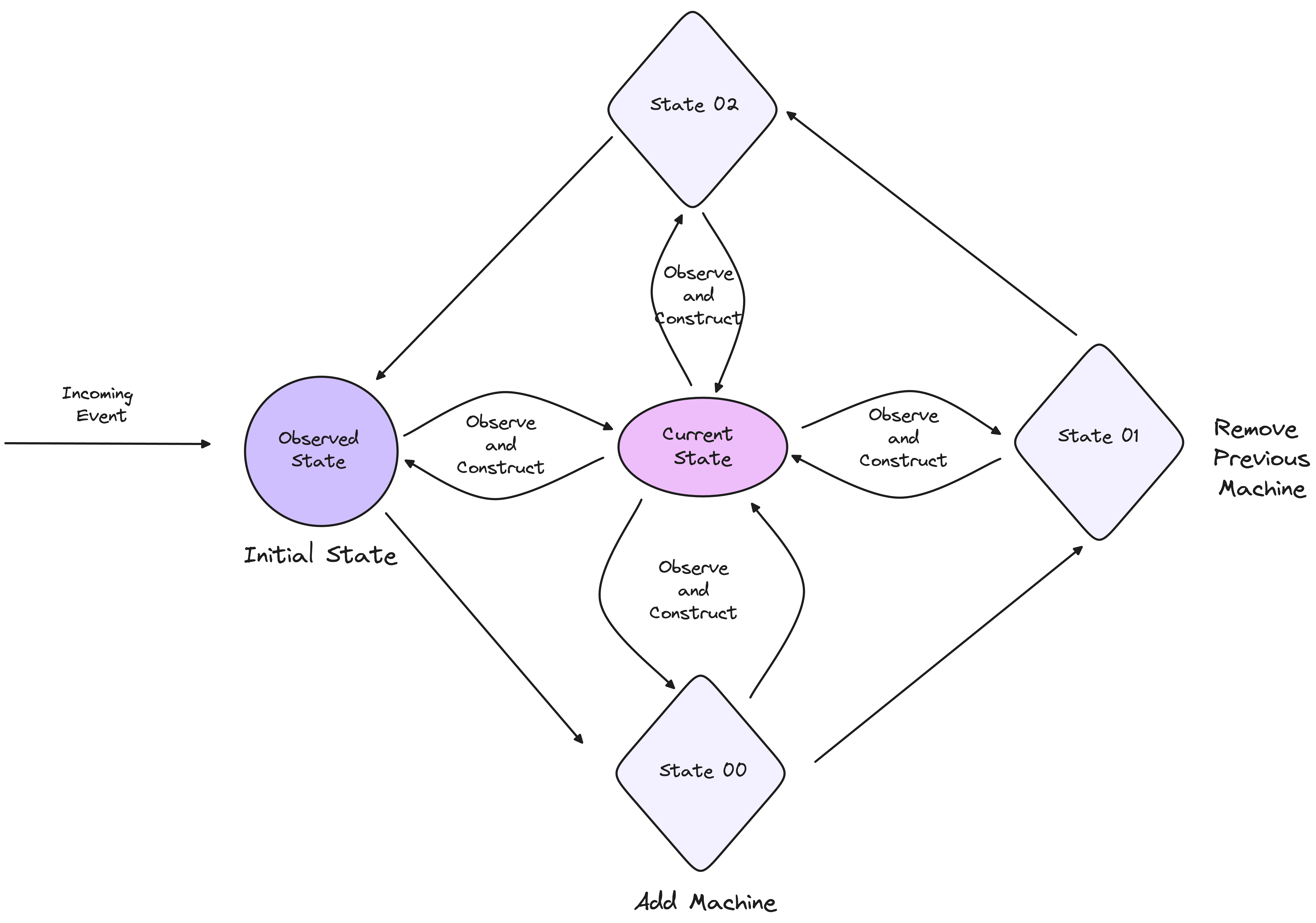

Here’s an example of observed state

  1. Observed State Definition
// Observed States are inferred based on system conditions

fn get_observed_state() -> &'static str {
if new_machine_exists() && old_machine_exists() {
return "AddingNewMachine";
} else if !new_machine_exists() && old_machine_exists() {
return "DeletingOldMachine";
} else if new_machine_exists() && !old_machine_exists() {
return "Final";
} else {
return "Initial";
}
}

  1. Handling States (Condition-based State Observation) Instead of using events to trigger transitions, we observe the current state and perform actions accordingly.
fn handle_state() {
let current_state = get_observed_state();

match current_state {
"Initial" => {
println!("Current state: Initial. Preparing to add a new machine.");
add_new_machine();
}
"AddingNewMachine" => {
println!("New machine added. Preparing to delete the old machine.");
delete_old_machine();
}
"DeletingOldMachine" => {
println!("Old machine deleted. Process nearing completion.");
finalize_process();
}
"Final" => {
println!("System is in the final state. No further action required.");
}
_ => {
println!("Unknown state.");
}
}
}
  1. Actions The logic for each action remains similar but is now tied to the observed state instead of explicit event transitions.
// Action: Add New Machine
fn add_new_machine() {
println!("Adding new machine...");
// Logic to add a new machine
}

// Action: Delete Old Machine
fn delete_old_machine() {
println!("Deleting old machine...");
// Logic to delete old machine
}

// Action: Finalize Process
fn finalize_process() {
println!("Process complete.");
}

  1. Helper Functions These functions observe the system’s current state and return true or false to indicate whether certain machines exist. This helps in inferring the state.
// Helper functions to check if machines exist
fn new_machine_exists() -> bool {
// Logic to determine if the new machine exists
// For example, checking a database or an external system
true
}

fn old_machine_exists() -> bool {
// Logic to determine if the old machine exists
true
}

Summary

The article dives deep into how these concepts apply to building infrastructure products, comparing the rigid nature of state machines to the adaptability of an observed state system. Drawing from real-world experiences in control plane architecture and Kubernetes, it highlights the pros and cons of both models in managing the evolving state of complex systems.

If you are looking to build control planes and build state driven infra components, feel free to contact us.

· 7 min read

For a couple of years, my journey has revolved around constructing control planes for data infrastructure startups. As an engineer I have been fortunate to gain invaluable insights into the challenges and intricacies of developing successful SaaS products. Drawing from my firsthand experiences, this series of blog post's delves into the lessons learned and shares my goals at BaaZ, where I am building a centralised control plane for SaaS infrastructure. Join me as we explore the critical aspects and key considerations of constructing effective control planes in the dynamic and competitive SaaS industry.

Introduction

Before we delve into the content, let's address the ambiguity surrounding the term "Control Plane for SaaS Infrastructure." In the context of SaaS infrastructure, the control plane refers to the centralised system that governs and orchestrates the deployment, configuration, and operation of applications and services on data planes. Data Planes can exist within the SaaS providers network or at the customer premise. By SaaS Infra, I specifically mean the service provisioning layer in a SaaS product.

SaaS Architecture Layers

Let's discuss a high level approach of SaaS architecture layers.


· 8 min read

In our previous post, "Centralised Control Planes for SaaS - Part 1," we delved into the world of SaaS business models and the challenges that arise when constructing a centralised control plane. In this instalment, we will take a closer look at the crucial first step in building a control plane: the design of an asynchronous event handling system. This system plays a pivotal role in creating infrastructure, managing tenants, and deploying applications within a SaaS environment. Moreover, we will explore two distinct schools of thoughts : application developer versus infrastructure developer.

Introduction

In the realm of SaaS, the control plane serves as an orchestrator of fundamental operations. Our focus here lies specifically within the service provisioning layer. This layer enables the control plane to execute CRUD operations on various entities. Let's break down these operations:

· 3 min read

In our previous post, "Centralised Control Planes for SaaS - Part 2," we discussed about the approaches to build a stateless control plane and how to handle async communication b/w the data planes and cloud provider. In this instalment we take dive into the physical and logical models in a SaaS control planes.

Introduction

As we build a robust SaaS architecture understanding of logical and physical mappings is essential. These mappings serve as tools in aiding SaaS developers in the translation of user-facing processes into corresponding SaaS backend workflows.

Logical Model and Physical Model

The logical model encompasses metadata pertaining to various aspects of the system:

  • Organisations: Every user using the SaaS platform belongs to an organisation. Organisation is a customer for the SaaS provider.
  • Tiers or Plans: The different levels of service or subscription plans offered to users.
  • Workspaces: Dedicated spaces for users to collaborate and deploy applications.
  • Applications: Software applications and services provided within the SaaS framework.

This metadata is stored in metadata DB. It is important to note that for each logical entity, there exists a corresponding physical entity in the system.


The physical model, deals with the tangible, real-world bindings to the underlying infrastructure that supports the SaaS architecture. These physical include:

  • Customer: A customer is an organisation.
  • Data Planes: Data Planes are where the software is deployed. They can be in the SaaS provider network or in the customer network.
  • Tenants: Segregated sections or environments within the architecture, often employed for multi-tenancy support.
  • Applications: Application denotes the SaaS provider's application.
note

This diagram displays mapping between the logical and physical terminologies.



Relationship Model

Here we understand the relation between each of the components described within the logical and physical model.

Organisation, Workspace and Applications ( Logical )

  • Organisation onboarded is a customer for the SaaS Provider.
  • Organisation can consists of a single workspace or multiple workspace.



Tiers or Plans and SaaS Types ( Logical to Physical )

  • A Tier or Plan is offered by the SaaS provider.
  • Each Tier or Plan has a quota limit on the usage of the SaaS product.
  • Organisation onboarded have a SaaS Tier associated with them.
  • Each tier is mapped to a SaaS Type.



SaaS Types and Data Planes ( Conceptual to Physical )

  • Each SaaS Type is mapped to a data plane.
    note

    SaaS Type is a conceptual model. Each SaaS Type has a physical mapping ie data planes. Data Planes as an abstraction consist of network, storage and kubernetes.


End to End Mapping between Logical and Physical Models

  • The logical entities is metadata stored in the database.
  • For each entity stored a physical entity is created.



Summary

SaaS architecture relies on logical and physical models. These models aid developers in bridging user processes with backend workflows. If you are building a SaaS, and want to build a control plane, feel free to get connected with us.

· 3 min read

In this article, we explore the use cases of Helm and Kubernetes operators, demystifying when to use each tool, based on BaaZ's experience in developing and maintaining Kubernetes operators, controllers, and libraries

Introduction

In the realm of software development, the principle of separation of concerns holds great significance. It emphasises the need to divide a system into distinct parts, each responsible for a specific aspect of functionality. This approach promotes modularity, maintainability, and scalability, allowing developers to focus on specific areas without unnecessary dependencies. When it comes to managing Kubernetes deployments, the Helm tool and the operator pattern play crucial roles in adhering to this principle. In this blog post, we will explore the separation of concerns in Helm and the benefits of using operators in Kubernetes deployments.
